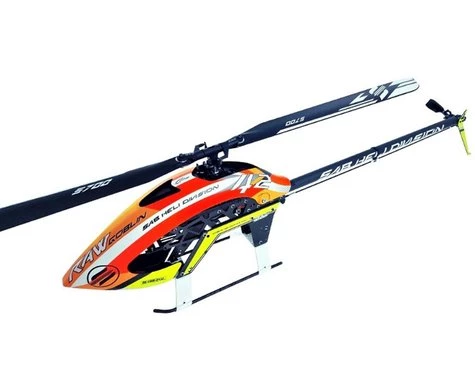

SAB Goblin Piuma 700 Electric Helicopter Kit w/Main & Tail Blades

The SAB Goblin Raw Piuma 700 RC Heli is a unique concept on modern electric 700 design. The Piuma is built with the incredibly successful foundation of the Goblin Raw 700. With special updates and specific lightweight designed parts installed, the Piuma is a modern take on an incredibly lightweight focused airframe design. Featuring a bare airframe weight of 2200g (4.85lbs), it’s unique focus with lightweight and moderate headspeed allows pilots to have a dedicated heli for practicing simple orientations, or mild to advanced 3D maneuvers with a helicopter that provides a relaxing experience – thanks to the slower headspeeds that the Piuma is optimized for.

Picking electronic components for the 700 will be a bit different than a normal 700 sized heli. Starting with the motor, the Piuma can house a 4025, 4030, or 4035 sized brushless motor. ESC choices will be between a 130A to 150A typically – anything larger isn’t really worthwhile, or adds to performance. Battery choices can be 6s, 7s for sport flyers who are looking for a larger sized model, and dedicated low headspeed training heli for orientation and basic aerobatic practice. If you’re looking for a bit more performance, then a 12s 3300-4000mAh battery is the ideal choice paired with a 4030 or 4035 500-560kV motor.

Specifications:
Main rotor diameter: 1542mm w/700mm blades
Main blade length: 650-730mm
Gear Ratio: 10.77:1 (20T pulley included)
Tail Gear Ratio: 5.1:1 (22T pulley included)
Estimated weight: 2200g (airframe only)

Includes:

• (1) SAB Goblin Raw Piuma 700 Electric Helicopter
• (1) Set of SAB Carbon Fiber Main Blades
• (1) Set of SAB Carbon Fiber Tail Blades

Needed To Complete:

• 2.4GHz Transmitter & Receiver (7-channel or more, helicopter system)
• (1) Electric Motor 4025-4035
• 6s Set Up: 1000-1200kV
• 12s Set Up: 500-560kV
• (1) ESC – 130-150A
• (3) Cyclic Servos (Standard Size, 40mm; High Torque Recommended)
• (1) Tail Rotor Servo (Standard Size, 40mm)
• LiPo Batteries
• 6s Set Up: 6s 5000mAh
• 12s Set Up: 3300-4000mAh
• 3-Axis Flybarless System
• Compatible Battery Charger
• Pitch Gauge
• Various tools, lubes & greases for setup and assembly
